CBM – Tension Rod Systems (Type 1 & Type 2)
Engineered Strength for Architectural & Structural Applications.
At CBM – Cable Line UAE, we specialize in the supply of high-performance Tension Rod Systems, designed to deliver exceptional structural support and visual appeal in modern architecture. Our Type 1 and Type 2 Tension Rod Systems offer precise engineering, durability, and flexibility to meet the demands of tensile architecture, steel structures, façades, and bridges.

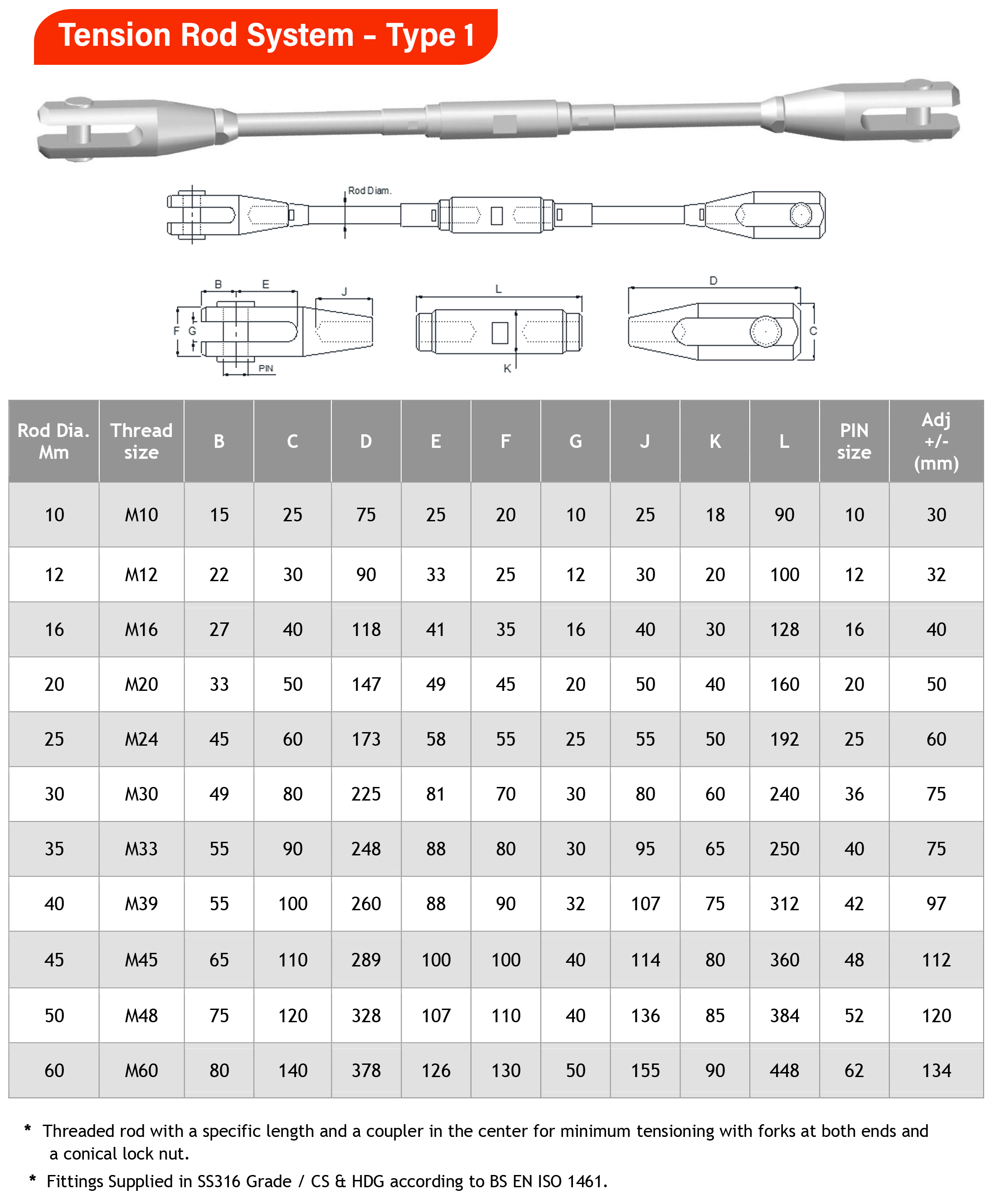

Tension Rod System – Type 1
Type 1 systems are designed for higher load capacities and feature forged end fittings, such as forks or eyes, with central rods and extension sleeves for longer spans. Commonly used in heavy-duty structures such as cable bridges, atriums, and long-span steel frameworks.
Features:
Engineered for heavy tensile loads
Sleek architectural finish with concealed threads
Swivel clevis or eye end options for rotation flexibility
Meets international structural safety standards

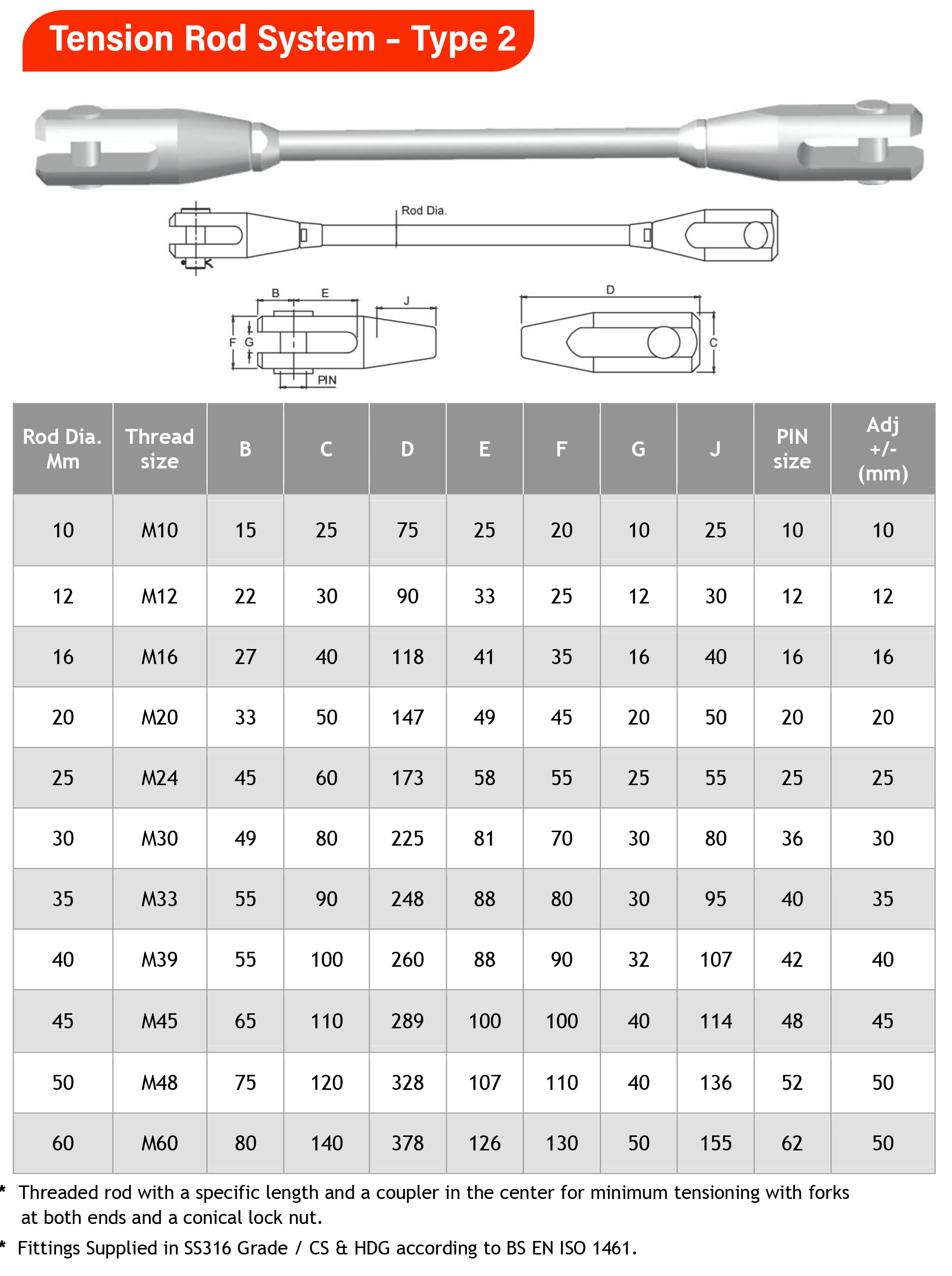

Tension Rod System – Type 2
Type 2 is a standard tension rod assembly that includes clevis ends, locking nuts, and fully threaded bars. It is ideal for light to medium-duty architectural bracing and structural tensioning applications.
Features:
All parts made from high-grade stainless steel or galvanized steel
Custom rod lengths & diameter options (M8–M56 and above)
Used in braced canopies, curtain walls, and truss systems
Precision alignment and easy on-site adjustment
Applications:
Tensile Membrane Structures
Glass Curtain Walls & Roofs
Suspension Bridges & Steel Facades
Shade Canopies, Pedestrian Walkways
Stadiums, Airports & Commercial Buildings
Why Choose CBM – Cable Line UAE?
In-house engineering & custom fabrication
Full design support for architects & consultants
Quick delivery across the UAE, GCC & international markets
High-strength materials tested for structural safety & durability
